Monday, March 29, 2010

The Knice-N-Clean Glycerin SAP Test

The Knice-N-Clean Glycerin SAP Test (KNC SAP Test)
by Rick Knicely of Knice-N-Clean Soap Company LLC

Determining a SAP value for your biodiesel glycerin (BDG) is a simple process that will make BDG soaping  easier and more consistent. Everyone’s BDG can be a bit different, however if you maintain the same oil sources and processing methods, your BDG SAP should remain somewhat consistent.

Armed with the proper SAP value for your BDG will allow you to be sure that all of your saponifiable elements have been turned into soap. Without a proper SAP value your soap can come out caustic hot or become rancid over time. A proper SAP value will also ensure that your soaps are not superfatted with saponifiable elements such as biodiesel. Undersaponified liquid soaps can be cloudy. However, liquid and gel soaps made with a proper SAP value will turn out crystal clear.

First you must be sure your BDG has had the methanol removed, preferably with a distillation method and the your BDG is as dry as possible.  We heat our BDG up to between 275ºF and 300ºF or until the BDG just starts to smoke.  This ensures that our BDG is dry and as free of methanol as possible.

Calculating a SAP value is similar to performing a titration. You will take a known amount of BDG and add iterations of a caustic solution until you have fully saponified any saponifiable elements left in the BDG. Summing the iterations used will result in a SAP number.

It is possible that you could have a negative SAP value.  This can happen when you have excess caustic left over after your boidiesel reaction.  I will refer to a positive SAP as +SAP and a negative SAP as -SAP for the remainder of this post.

After a SAP value has been determined using  KNC SAP Test not only can you be sure that your BDG soap is fully saponified but you can also can use your BDG as an ingredient in any soap recipe.

The SAP Solutions
The caustic solution is created by dissolving either NaOH or KOH into distilled water.

Bar (NaOH) SAP Solution
  • 1000g (1 liter) of distilled water
  • 140g of NaOH
Liquid/Gel (KOH) SAP Solution
  • 1000g (1 liter) of distilled water
  • 200g of KOH
Negative SAP Solution
  • 1000g (1 liter) of distilled water
  • 232g of Citric Acid
Check for a -SAP
If the pH of your BDG is 11 or greater you most likely have a -SAP.  If this is the case follow the instructions below on "Determining Your -SAP Value" otherwise continue with "Determining Your +SAP Value"

Determining Your +SAP Value
  1. Start by selecting a starting SAP number. A 20% SAP number is a good starting point. Once you have an idea of your BDG SAP you can better predict your starting SAP number for future KNC SAP Tests.
  2. Measure out 200g of distilled water into a wide mouth mason jar or other microwave suitable container.
  3. Add 100g of BDG to the distilled water.
  4. Stir until the BDG is fully dissolved into the distilled water.  Mixing with a stick blender will greatly reduce the time needed to perform the KNC SAP Test.
  5. Place the jar in the microwave and using short 15-30 second bursts heat the solution until the temperature reaches 213ºF or you notice the solution coming to a small boil.  Note: Re-heat the solution as necessary to maintain 213ºF.
  6. Measure out the starting amount of the +SAP solution. If your starting SAP number will be 20% you will add 20ml of your SAP solution to the BDG solution. Mix well preferably with your stick blender.
  7. Place the jar back into your microwave using short 15-30 second bursts until you notice the solution starting to boil. Watch carefully because this may create a lot of foam and could spill over the top of your container.
  8. Check the pH of the BDG solution. The pH might be quite high at 12 or above. You should then notice the pH start to drop. This can occur as fast as a few moments or take long as an hour.  During this time try to maintain a temperature above 190ºF.
  9. Once the pH has dropped to or below 10.5 add 1ml of the +SAP solution. Keep track of how many ml you have added.
  10. Continue with steps 8 and 9 until the pH is at or above 11 and the pH does not drop for at least an hour. At this point you have fully saponified any saponifable elements left in the byproduct.
  11. Add the SAP starting value and the iterations of +SAP solution together then subtract 1. By subtracting 1 you are not including the 1ml that caused the pH to remain above 10.5.
  12. For this example lets assume your starting SAP number was 20% and you added 5ml of SAP solution. The math would be (20 + 5 - 1) or a SAP number of 24%.
  13. Use the Knice-N-Clean Soap Calculator to create a soap recipe from your BDG. Simply select "Glycerin Byproduct (BDG)" from the ingredients drop down. Enter the amount of BDG you are going to use. Then select your SAP number from the SAP dropdown. The calculator will then indicate the amount of caustic you will need to saponify your BDG and other ingredients you select.
  14. The Knice-N-Clean Soap Calculator will also allow you select other soap making ingredients you may want to use along with your BDG. Again the calculator will take care of all the SAP math and totals for you.

Determining Your  -SAP Value
  1. You will be starting out with a -1% SAP number. Each -1% is 1ml of negative SAP solution.
  2. Measure out 200g of distilled water into a wide mouth mason jar or other microwave suitable container.
  3. Add 100g of BDG to the distilled water.
  4. Stir until the BDG is fully dissolved into the distilled water.  Mixing with a stick blender will greatly reduce the time needed to perform the KNC SAP Test.
  5. Place the jar in the microwave and using short 15-30 second bursts heat the solution until the temperature reaches 213ºF or you notice the solution coming to a small boil.  Note: Re-heat the solution as necessary to maintain 213ºF.
  6. You will be starting with a -1% SAP. Measure out 1ml of the negative SAP solution and add it to the to the BDG solution. Mix well preferably with your stick blender.
  7. Place the jar back into your microwave using short 15-30 second bursts until you notice the solution starting to boil. Watch carefully because this may create a lot of foam and could spill over the top of your container.
  8. You should notice the pH start to drop quickly, much quicker than you see when testing for a +SAP.   Check the pH of the BDG solution.  During this time try to maintain a temperature above 190ºF.
  9. If the pH is still above 10 add 1ml of the -SAP solution. Keep track of how many ml you have added.
  10. Continue with steps 8 and 9 until the pH is at or below 10. At this point you have fully neutralized any caustic left in the byproduct.
  11. Add the iterations of  the -SAP solution together then add 1. By adding 1 you are not including the 1ml that caused the pH to remain below 10.5.
  12. For this example lets assume you used 5ml of  the -SAP solution. The math would be (-5 + 1) or a SAP number of -4%.
  13. This means you will need to use a whole oil or fatty acid in your recipe to make up for the -SAP value.
  14. Use the Knice-N-Clean Soap Calculator to create a soap recipe from your BDG. Simply select "Glycerin Byproduct (BDG)" from the ingredients drop down. Enter the amount of BDG you are going to use. Then select your SAP number from the SAP dropdown. The calculator will then indicate the amount of caustic you will need to saponify your BDG and other ingredients you select.
  15. The Knice-N-Clean Soap Calculator will also allow you select other soap making ingredients you may want to use along with your BDG. Again the calculator will take care of all the SAP math and totals for you.

Multi Jar Variation

  1. Prepare 4-6 jars using steps 2 thru 5.
  2. Add 14ml of SAP solution to the first jar.
  3. Increase the SAP solution by 2ml for each of the other jars. i.e. 14ml, 16ml, 18ml, 20ml, 22ml, 24ml.
  4. Mix each jar with your stick blender.
  5. Place all of the jars into an oven or roaster with the temperature set at 205ºF.
  6. Allow the jars to "cook" for 2 hours.
  7. At the end of 2 hours check the jar with the highest SAP test. If the pH of the solution is 10.5 or below you will need to add more solution to each of the jars and follow step 6 and 7 again. Add enough SAP solution to the first jar to make it 2ml more than the last jar. Again increase the SAP solution by 2ml for each of the other jars. i.e. 26ml, 28ml, 30ml, 32ml, 34ml, 36ml. Note: If the pH of your first jar is over 10.5 you will have to start out with a fresh set of jars. i.e. 2ml, 4ml, 6ml, 8ml, 10ml, 12ml.
  8. Find the jar for which the pH of the solution is closest to 10.5. The SAP number for that jar is the SAP you can use for your BDG with the Knice-N-Clean Soap Calculator.
Note: (-SAP Multi Jar): If you are using the Multi Jar method in determining a -SAP value, for step 3 you can start with 1ml of -SAP solution and then increase by 1ml for each jar.  i.e. 1ml, 2ml, 3ml, 4ml, 5ml. And  for step 7 you will check for a pH of 10.  If you have to continue to another set of jars you will start with 6ml and go up by 1ml. i.e. 6ml, 7ml, 8ml, 9ml, 10ml.

Note: You can also use your stove top when performing the KNC SAP Test. To do this use a steel or glass pan and keep the temperature at or just above 213ºF for the duration of the test. Add distilled water as necessary to replace any water that might boil off during the test.

YOUR BDG MUST NOT CONTAIN METHANOL WHEN PERFORMING THE KNC SAP TEST.

DO NOT USE AN ALUMINUM PAN FOR THE KNC SAP TEST.

Helpful Tip: Fill a full 55 gallon drum or 275 gallon tote with your BDG. This way 1 KNC SAP Test will be valid for a much larger volume of BDG!

To  learn more about soap making from Biodiesel glycerin, be sure to check out our great book "Making Biodiesel Glycerin Soaps". It contains this SAP test method and many more great tips & tricks for getting the best soap out of your Biodiesel glycerin. Click here to learn more.

Copyright Knice-N-Clean Soap Company LLC 2010 All rights reserved

Saturday, March 27, 2010

How much water to use when BDG soaping.

The three basic methods of determining water in traditional soaping are;
  • Water as a percentage of oils. 20% - 40% for traditional soaping.
  • Lye concentration 20% - 30%
  • and water:lye ratio usually 2:1 for NaOH and 3:1 for KOH
You can short the water as low as a 1:1 lye:water ratio.

Shorting water for bar soap can be tricky. Shorting water for Liquid soap may be unnecessary, in fact adding more water can be beneficial.
How do we apply this to BDG?

Let's talk bar first.

If your soap:glycerin ratio is low in soap then you can get away with shorting the water a bit more. The higher the soap ratio the harder it is to short the water, especially if you will be hot processing (HP). If you will be cold processing the soap you can get away with shorting the water because you can pour the soap prior to the soap getting too thick. If you will be adding additional ingredients to your bar soap and are going to short the water you will want to be sure to cold process (CP) your soap.

I will be modifying the calculator to allow you to adjust your water method. Overall if you are not going to HP your soap shorting the water is okay especially if you are not going to add other ingredients. When you start adding other ingredients you may find it more difficult to short the water.

You might think that the fact that our BDG is very low in saponifiable elements makes things easier, but in some ways it makes things harder. It's easier because the soap that exists helps "seed" new soap formulation, however the soap has a much higher melting point than the oils. That's one reason I talk about the 170*F - 180*F as cold processing (CP). Normal CP soaping is around 110*F - 160*F. CP in this case means that the soap is not cooked until it is neutral, and no additional heat is used after trace.

If you use too little water when making BDG bar soap you could actually end up with little caustic pockets instead of saponifying the BDG. 5% - 10% of the weight of your BDG should be sufficient to keep the BDG fluidic when making bar soap. The extra can also improve the workability during saponificaion and should evaportate out during the curing phase. Another ingredient than can improve workability is sodium lactate, so much so that we have actually included it as an optional ingredient in bar soap recipes generated with the soap calculator.

Now for liquid soap.

All of this holds true for liquid soap too. The soap will end up as a paste that you later dilute into liquid soap. With that we can also use a pre-diluted method where the soap has some of all of the water for the final dilution added during saponification. This avoids the need to dilute the paste later but some of the water can evaporate during the cooking phase of HP. You can weigh the soap before and after to make up the difference. One advantage of the paste method is that you need less space to store the excess soap. One advantage of the pre-diluted method is that it is much easier to add the final dilution water.

If you will not be adding any extra ingredients you might want to add more water than the caustic calls for. This is because you have already demethed and "dried" the BDG. If the BDG gets too thick for your stick blender when you add the caustic water, you might think about adding enough water to allow the BDG to remain fluid.

Conclusion -
As with traditional soaping deciding how much water to use can be tricky. You will have to decide for yourself how much water to use and when to short the water.  Liquid soap is much more forgiving than bar soap when it comes to water.

To learn more about soap making from Biodiesel glycerin, be sure to check out our great book "Making Biodiesel Glycerin Soaps". It contains lots of great tips & tricks for getting the best soap out of your Biodiesel glycerin. Click here to learn more.

Happy Soaping :)

Copyright Knice-N-Clean Soap Company LLC 2010 All rights reserved

Monday, January 18, 2010

NaOH Biodiesel Glycerin (BDG) (Hybrid) Gel Soap

Believe it or not you can use your NaOH (sodium) based BDG to make a liquid or gel soap. This is possible because the NaOH BDG has saponifiable ingredients left in it. These saponifiable elements will be turned into KOH soaps. The soap will be a really nice gel soap at a 50:50 soap to water dilution. The soap will be a thickened liquid or gel because the sodium soaps will act as the thickener in the soap. There will be no need for any thickeners such as borax.

The trick to this working just right is full saponification of the saponifiable elements left in the NaOH BDG. If you do not fully saponify the BDG you can end up with a thin liquid that will congeal into a mass. No amount of dilution will give you a nice liquid or gel.

To be sure you have fully saponified your BDG you should do a SAP test on your BDG. This way you know exactly how much KOH it will take to fully saponify your NaOH glyceirn.

This recipe is a very basic recipe. Once you have mastered this recipe you can go on to adding any other ingredients to add properties to your gel.

You will need the following;
  • 32oz NaOH BDG
  • KOH SAP value for your NaOH glycerin
  • 1.6oz KOH (26% SAP used)
  • 32oz Distilled water
  • pH Paper


Melt your NaOH BDG.



Mix your KOH caustic water.



Add the caustic water to your melted BDG and mix with a stick blender for about 5 minutes. Notice that the BDG will go from a dark brown color to a tan color. This indicates that the saponifiable elements in the BDG are starting to be saponified.





Heat the soap to 180*F and hold it there until the soap neutral and has a pH around 10.5. This could take up to 3 hours. Check the pH of the soap every 30 minutes or so. You should notice the soap go from the light tan color back to a translucent brown color.



Allow the soap to cool.



The soap should be very thick and transparent. The pH should be between 10 and 10.5. If the soap is still thin or the pH is less than 10 you will need to add more caustic (KOH) water. Mix 1/2 ounce of KOH with 3 ounce of distilled water. Add this 1 Tablespoon at a time until the soap thickens and the pH is between 10 and 10.5


To learn more about soap making from Biodiesel glycerin, be sure to check out our great book "Making Biodiesel Glycerin Soaps". It contains lots of great tips & tricks for getting the best soap out of your Biodiesel glycerin. Click here to learn more.

Happy Soaping :)

Copyright Knice-N-Clean Soap Company LLC 2010 All rights reserved

Saturday, January 16, 2010

Melt & Pour (MP) soap from rebatch material.

*** 01/16/2010 Updated to include transparent soap at the end of this post ***

I have been playing with making MP soap from BDG. One of the methods I've been using to experiment with is by using bar soap scraps. I did a re-batch of both of the bars of soap from the last blog. One of them is a BDG bar and one is a bar made by Kimberly Natures Art.



I am aiming only for a bit of added transparency, my main goal is to lower the melting point of the soaps. Most cured soap needs to be heated close to 200*F and cools very quickly. It also, as I've found, tends to melt your molds.

Transparent soap is not much more complicated but it takes more solvent. If you do not have a high ratio of stearic, palmitic, myristic or lauric acid in your soap the soap can get rather soft. In addition recipes with castor oil turn out much more transparent due to the fact that castor oil also acts like an alcohol.

Making re-batch MP is super easy. For your recipe you only need to weigh out your scraps and add 20% alcohol. That's it.. Really...
  • Put your scraps into a microwave safe container.
  • Microwave them with short 30 second bursts until the soap gets sticky.
  • Add some of the heated soap to your alcohol then pour that back into your container.
  • Microwave that with short 15 second bursts stirring after each burst.


Sticky Soap


Adding to alcohol


You will end up with a soap broth that looks similar to the following pics.




Notice the "new" melt point of the soap.



Here is how easily it pours.





Here are a few pics of the soaps setting up.





And the final bars. Remember I was only shooting for MP not transparency, but you can clearly see a shift into transparency in both bars.





I decided to see what it would take to make Kimberly's soap transparent. I used hers because I have already done this with my BDG soaps.

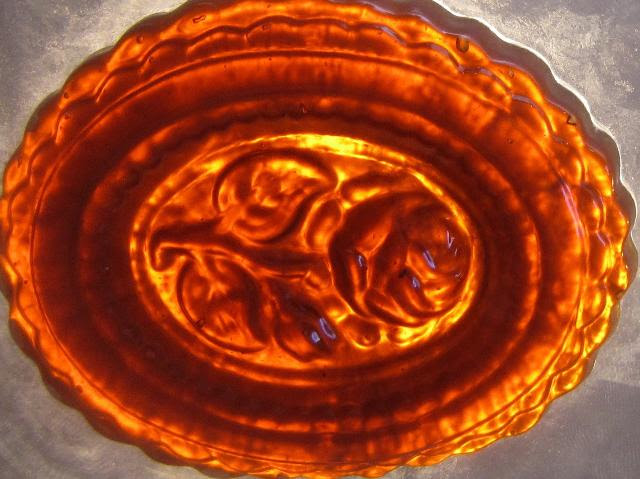

I used 40% alcohol and 5% more water this time and this is the result. A really nice and firm golden soap. The golden color came from the oleic acid that Kimberly used to make the soap.

I ended up using the extra water because the soap did not want to dissolve into the alcohol, instead it looked sort of like boiling oatmeal or taffy. I have found when this happens just a little bit of water is needed to correct this.




To learn more about soap making from Biodiesel glycerin, be sure to check out our great book "Making Biodiesel Glycerin Soaps". It contains lots of great tips & tricks for getting the best soap out of your Biodiesel glycerin. Click here to learn more.

Happy Soaping :)

Copyright Knice-N-Clean Soap Company LLC 2010 All rights reserved

Traditional Ingredients BDG Experiment

Recently I did an experiment with Kimberly of Natures Art. Kimberly came across some glycerin and was looking for some ideas. I asked her if she was willing to do an experiment with some of the ingredients that I use with BDG. She kindly accepted.

I was interested in comparing soaps made with the same ingredients as I sometimes use with BDG soaps. She used the same fatty acids that were used in the BDG recipe. In place of the BDG she used regular glycerin and oleic acid. Our BDG is high in oleic acid soaps due to the oils commonly used to make biodiesel in my area.

Other than the color the soaps are almost identical in properties. This experiment has helped me in that I had assumed there were a high ratio of soft oil soaps in the BDG. Kimberly's soap showed the same thing with no BDG using traditional ingredients.

Here is a picture of the BDG and Traditional ingredients side by side.




To learn more about soap making from Biodiesel glycerin, be sure to check out our great book "Making Biodiesel Glycerin Soaps". It contains this SAP test method and many more great tips & tricks for getting the best soap out of your Biodiesel glycerin. Click here to learn more.

Happy Soaping :)

Copyright Knice-N-Clean Soap Company LLC 2010 All rights reserved

Saturday, January 9, 2010

Fixing Layered NaOH BDG Liquid Soap


I recently received a liquid soap made by a fellow BDG soaper.

He is unhappy with his liquid because it has 2 layers. One really nice clear layer on the bottom and a really greasy opaque layer on the top.

I am going to try to work out what went wrong with his soap. I suspect it has something to do with unsaponified elements.

Notice the layer on the top of the soap. This soap was made from NaOH glycerin saponified with KOH so it has already been "Thickened". If the soap had not been thickened this layer would appear at the bottom of the soap. In less severe cases the soap would just be cloudy.

Unsaponified ingredients cloud the soap but when it reaches a saturation point the unsaponified ingredients float to the top in thickened soaps and fall to the bottom with non-thickened soaps. This process is also known as sequestering.

Sequestered material is not always unsaponified ingredients but in this case that is what I suspect.

Stay tuned... I will be attempting to "fix" this soap.

=== Updated 01/11/2010 ===

What I've found is that this soap was not fully saponified. The first indicator was the pH of the soap. The pH was really low being just above 8. A low pH doesn't always mean that you have saponifiable elements left, it's just a good indicator. Your pH could be as high as 10.5 and you could still have saponifiable elements left in your soap.

You can read a bit about pH or caustic testing your soap at Knice-N-Clean.com.

I took a sample of the soap and ran a SAP test on it and found that it needed another 2 grams of KOH caustic for the soap sample in the first photo. That is actually quite a bit. If a SAP had been calculated on the BDG prior to making the soap this could have been avoided.

You can find out more about working out a SAP for your BDG in our book "Making Biodiesel Glycerin Soaps".



Notice how the soap gets very cloudy and opaque during saponification. This is normal and will remain cloudy until saponification is complete. I hot processed (HP) the soap to speed up saponification and I was able to finish the soap with less than 30 minutes of cooking. You can also cold process (CP) the soap but it could take anywhere from overnight to a few weeks for saponification to complete.

Other indications that this soap was not fully saponified are;
  • The soap felt really greasy when you washed with it.
  • There was a foul undertone odor in the soap, it is possible that the soap had enough superfatting to cause the soap to start becoming rancid.
  • The soap lacked a nice lather.

This is the final soap. The soap now has a pH of 10.5. It has a nice feel when washing and the greasiness is gone. The foul undertone odor is gone and the soap has a really nice lather. The soap is also a bit thicker and now is a very nice viscous gel.



Notice the clarity of the soap. It's just a bit brighter than before and has a really crisp look to it.


To learn more about soap making from Biodiesel glycerin, be sure to check out our great book "Making Biodiesel Glycerin Soaps". It contains lots of great tips & tricks for getting the best soap out of your Biodiesel glycerin. Click here to learn more.

Happy Soaping :)

Copyright Knice-N-Clean Soap Company LLC 2010 All rights reserved
